Galvanized Gabion Wire Mesh for Gabion Basket / Stone Fence / Gabion Box

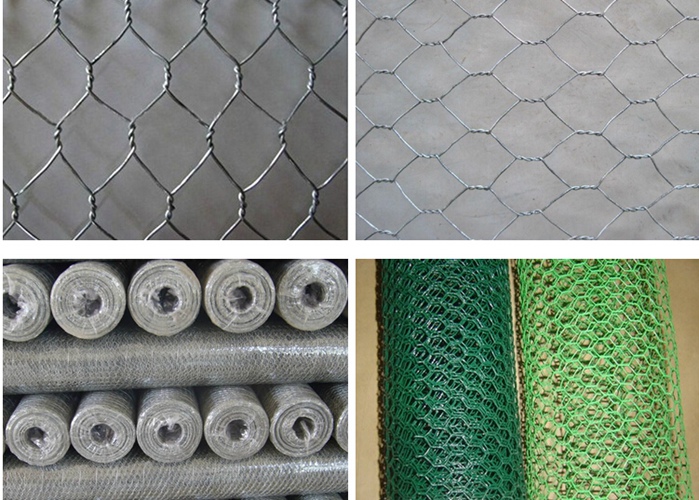

About Gabion Wire Mesh

Gabion mesh is known as by different shape of gabion box,gabion basket, gabion wall,gabion
mattresses, etc.It is hexagonal wire netting and can be finished by galvanized wire mesh or PVC
coated wire mesh.

Gabion basket shall be supplied in various length,width and heights,in order to strenthen the baskets,all the eages of the structutr shall br selvedged with wire of greater diameter.

Details of Gabion Mesh

1. Material :

galvanized iron wire or PVC coated wire
Galfan (95% zinc -5% Alu Alloy)low carbon steel wire which has good ability of resistance corrosion.

2. Surface Treatment:

Electro galvanized gabion box zinc coating :10g/m2
Hot dipped galvanized gabion box zinc coating :30-50g/m2.
Heavy zinc coated gabion box:250-300g/m2.
Pvc coated ,as usual the pvc thickness is 1mm

3. Mesh Wire: 2.0mm-2.4mm

Mesh size: 60x80,80x100,80x120, 100x120, 100x150, 120x150 ,160x180.
Selvedge wire dia: 3.2mm-4.2mm
Lacing /tie wire:2.2mm/3.2mm
Box size: 2x1x1m, 3x1x1m,4x1x1m, 2x1x0.5m, 2x1x0.3m, 3x1x0.5m, 4x1x0.5m
Weave style:double twisted hexagonal mesh
Diaphragm:every 1 meter length there is one diaphragm .

4. Regular size for Gabion Box Size

wire dia:2.7x3.4x2.2mm ,mesh 80x100mm,box size:2x1x1m

Regular size for Gabion Mattress
wire dia:2.7x2.2x2.2mm ,mesh 60x80mm ,mattress:3x2x0.3.

Regular size for Gabion box roll
wire dia:2.7x3.4mm .mesh 60x80mm/ 80x100mm ,roll size"2x50m

5. Gabion box advantage

economy ,filling the stones in baskets only

easily assembly, without any equipment and trained worker

protective, erosion and bad weather resistance

heavily formed without collapse

interstitial space the vegetation grow well, compatible to the surroundings

permeability ,avoiding to the damage from the hydrostatic force

Easily folded to transport and easily assembly, cost can be saved accordingly

6. Gabion box applications:

Control and guide of water or flood

Flood bank or guiding bank preventing of rock breaking water and soil protection

Bridge protection

Strengthening structure of soil

Protection engineering of seaside area
