Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels

Hebei Bros Metal Products Co., LTD
Contact Now
    Buy cheap Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels from wholesalers

    Buy cheap Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels from wholesalers
    • Buy cheap Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels from wholesalers
    • Buy cheap Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels from wholesalers
    • Buy cheap Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels from wholesalers

    Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels

    Ask Lasest Price
    Brand Name : BROS
    Model Number : Bros-0118
    Certification : ISO9001:2008
    Payment Terms : L/C, T/T
    Delivery Time : 5-20 days after we received your payment
    • Product Details
    • Company Profile

    Y Post 3D Curved Airport Security Fencing , Welded Wire Mesh Fence Panels

    Y Post AirPort Security Fencing 3D Curved Welded Wire Mesh Fence Panels


    Airport fence also known as "Y type safety defense retainer""razor wire fence"

    Its defensive strength and prevention level is high

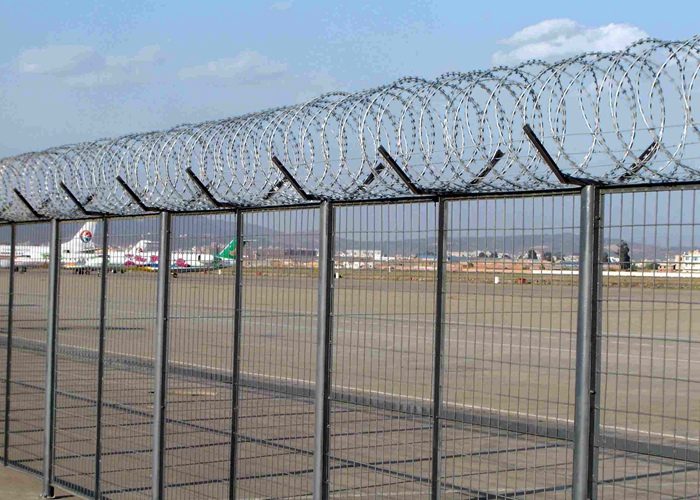

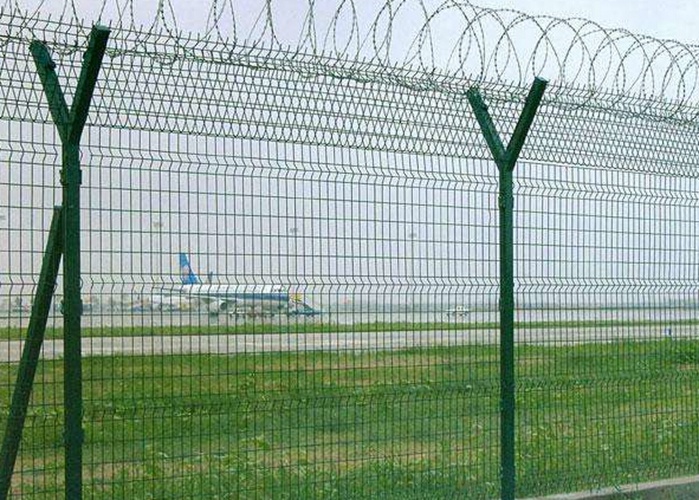

    Airport fence is usually made up with welded fence panel, "Y" type post(round or square post),"V" type top mesh and concertina razor wire on the top.


    1)Materials: Low Carbon Wire / pipe

    2)Wire Dia: 4mm, 5mm, 6mm

    3)Openings: 50x50,50x70,75x150mm, 50x200mm, 50x100mm etc.

    4)Fence Height: 630,1030,1230,1530,1730,2030,2430mm

    5)Finishing : Forms of corrosion resistance include electric galvanizing, hot-dip galvanizing, PVC spraying and PVC coating


    Post type: We could supply you various gauge and shape. For example, Y post ,T post ,Square post, Peach post ,Round post


    Color: The wire fence has rich colors: Green RAL6005, Black RAL9005, Blue, Grey, Brown, Yellow etc colors as your request.


    Structure: Airport fence is made with low carbon steel wire welded panel, post, barbed wire or razor wire and other accessories.

    Features: Corrosion resistance, nice appearance, easy maintenance, anti-intruding.


    Packing:


    1>fence panel:plastic flim+wood/metal pallet

    2>fence post:every post pack with a plastic bag(the cap is covered well on the post)+metal pallet 3>accessory:small plastic bag+carton box


    Application: air port fence is made of low carbon steel wire welded panel, Y shaped square post, barbed wire or razor wire and other accessories It is mainly used for barrier and security around the airport and anti-climbing projects. Such as airport enclosed, private land, prison fence, military stronghold, yard fence, Development zone isolation fence.


    Detail Specification


    ComponentsSpecifications
    Fence mesh panelWire diameter3mm- 6mm as standard
    Mesh size50x200mm as standard or customized
    Panel height1m- 2.5m
    Panel width1m- 3m
    PostY post50x50mm or 60x60mm as standard
    Unilateral inclined post
    Top

    Can be

    1. Barbed wire

    2. Barbed wire + Razor wire

    3. Mesh panel+ Razor wire

    Barbed wire: 12#, 14# as standard

    Razor wire: BTO-22 as standard

    Customization is available
    Panel SizeHeight(m)2.03,2.23,2.43
    Width(m)2.5 or 3.0
    Hole opening(mm)50*100,50*150,50*200
    wire diameter(mm)4 — 5
    Materiallow carbon steelwire,galvanized wire
    Curve quantitynormal 2 height:3-4
    V type mesh panelHeight(m)0.5
    Length(m)2.3 or 3
    Post type with V armsquare post(mm)60*60*2, 60*60*3
    Rectangular post(mm)60*80*3
    Length(m)normal 2.8-3
    Materiallow carbonsteelwire,galvanized wire
    Clampssteel or plastic
    FinishedPvc coated
