Brand Name : | BROS |
Model Number : | bros-1012 |
Certification : | ISO9001:2008 |
Payment Terms : | L/C, T/T |
Supply Ability : | 150 coils per week |
Delivery Time : | 5-20 days |
12x14Hot Dipped Galvanized Barbed Wire Coil, Security Mesh Fence
Products Description
Galvanized Barbed Iron Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Galvanized / PVC/ PE Coated Barbed Wire with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
Patterns Available for Galvanized Barbed Wire:
1.Single Twisted Barbed Wire
2.Double Twisted Barbed Wire
3.Traditional Twisted Barbed Wire
Packing: In coils. 12-25kg-50kg
Barb wire specifications
Type | Wire Gauge(SWG) | Barb Distance | Barb Length |
Electric galvanized barbed wire, hot dip zinc plating barbed wire | 10#*12# | 7.5-15cm | 1.5-3cm |
12#*12# | |||
12#*14# | |||
14#*14# | |||
14#*16# | |||
16#*16# | |||
16#*18# |
B.W.G | Barbed distance 3" | Barbed distance 4" | Barbed distance 5" | Barbed distance 6" |
12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |

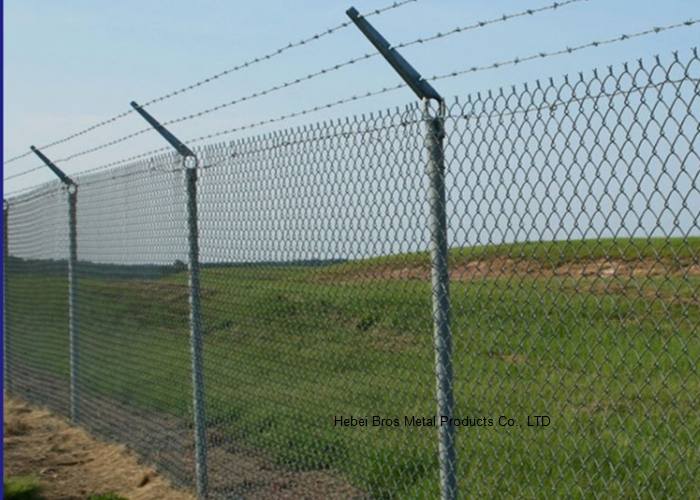

The Benefits of barbed wire Mesh Security Fence:
1 it is almost impossible to climb
2 high-strength steel core very difficult to cut off
3 powerful security fence barriers neat appearance
4 no secondary use, so he will not be stolen
5 simple to install.
Barb wire Applications
Galvanized barbed iron wire or PVC coated barbed wire are suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
barb wire used as barrier for lawn, railways, expressways, etc
![]() |
