    RAL Colors Barbed Wire Mesh Fencing For Boundary / Railway , Anti Corrosion

    Ask Lasest Price
    Brand Name : BROS
    Model Number : Bros-1004
    Certification : ISO9001:2008
    Payment Terms : L/C, T/T
    Supply Ability : 300 coils per Day
    Delivery Time : 5-25 days after the deposit is received
    • Product Details
    • Company Profile

    RAL Colors Barbed Wire Mesh Fencing For Boundary / Railway , Anti Corrosion

    PVC Coated Barbed Wire Mesh For Wire Mesh Fence / Barbed Iron Wire


    Barbed Wire Materials :


    Hot -dipped / electro-galvanized and PVCcoated wire or SS AISI430 and AISI304;


    Weaving and characteristics :


    Reverse twisted;galvanizing after weaving,galvanizing before weaving.It is divided to electrical galvanized ,hot - dipped galvanized,plas-tic coating,stainless steel,etc.It have the characteristics of corrosion-re-sisting and oxidation-resisting.


    Application:


    Barbed wire mainly serves in protecting of industry, agriculture, grass boundary, railway, highway, etc.


    Technical Info of PVC Coated Barbed Iron Wire:


    Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
    A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.


    Tensile strength of Standard PVC Coated Barbed Iron Wire is

    30-45 kgs./sq.mm.


    Feature:


    The appearance is very beautiful pvc and galvanized

    It not only can be usd as protection but used as decoration

    Anti - corrosion., extend the useful life


    Sizes of PVC Coated Barbed Iron Wire


    PVC coated barbed wire

    Before coatingAfter coating

    Barb distance

    Barb length
    1.0mm-3.5mm1.4mm-4.0mm7.5-151.5-3
    BWG11BWG-20BWGBWG8BWG-17BWG
    BWG11BWG-20BWGBWG8BWG-17BWG
    PVC Coating thickness: 0.4mm-0.6mm; different colors or length are available at customers’ request.

    Gauge of
    Strand and Barb in B.W.G.
    Approximate Length per Kilo in Meter
    Barbs Spacing 3"Barbs Spacing 4"Barbs Spacing 5"Barbs Spacing 6"
    12x126.06176.75907.27007.6376
    12x147.33357.90518.30158.5741
    12-1/2x12-1/26.92237.71908.30228.7221
    12-1/2x148.10968.8149.22429.5620
    13x137.98088.8999.572110.0553
    13x148.84489.689910.292310.7146
    13-1/2x149.607910.613411.470511.8553
    14x1410.456911.659012.542313.1752
    14-1/2x14-1/211.987513.367114.378115.1034
    15x1513.892715.494216.666617.5070
    15-1/2x15-1/215.349117.114418.406019.3386

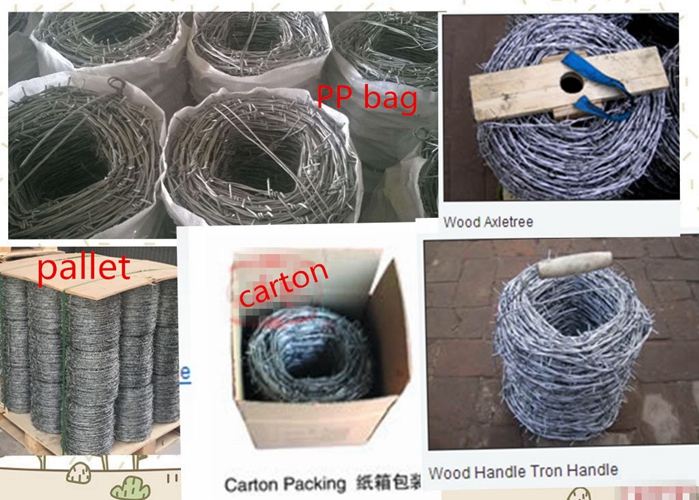

    Packing Terms


    1) In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth, PP bag etc.

    2) Carbon box, Wood Axletree, Tron Axletree, Wood handle

    3) Pallet packing
