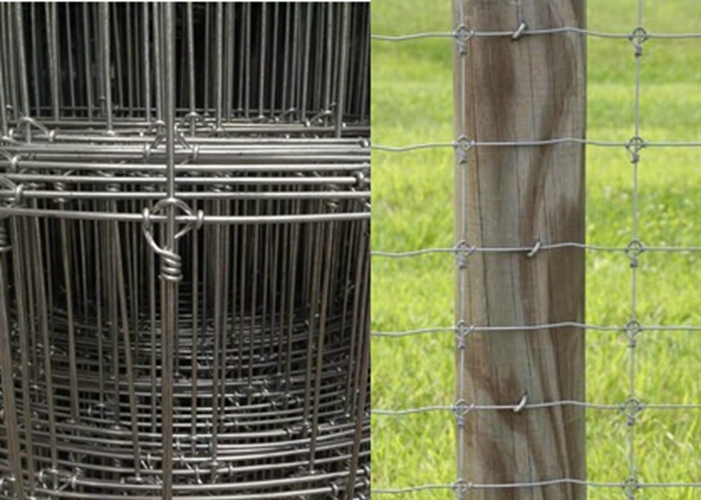

Galvanized Hinge Joint Fixed Knot Field Fence / Cattle Farm Fence For Livestock
Product Description
Field Fence also called hinge joint fence, farm fence, horse fence,
goat fence , cattle fence, sheep wire, sheep fence,animal fencing,
livestock fencing, stock fence, agriculture fence.
Mainly used as field fencing to protect cattle such as deer, horse,
cow, sheep and goats, and also used as grassland fence and farm
fencing.
1) Hinge Joint Field Fence for Wild Animals Preventing
The hinge jointed cattle fence is the strongest, longest lasting
and most adaptable
fencing available today.
2) Fixed Knot Farm Field Fencing
Material:galvanized mild steel carbon wire with extremely high
tensile strength
Horizontal wires: 2.50mm, Tensile strength: 1200-1400 N/mm2;
Vertical wires: 2.50mm, Tensile strength: 820-970 N/mm2;
Node wires: 2.24mm, Tensile strength: 400-550 N/mm2;
Feature & Advantages
--Firm structure, flat surface, uniform opening and good
integration.
This product offers good flexibility; good pressure resistance,
corrosion resistance
and weather resistance properties and can serve for a very long
time.
Even the cut pieces will not deform under pressure
--Easy to install on any kind of surface or terrain and long
lasting.
Contains equine hitting without harming the animal.
Confines small sheep and stubborn goats.
Keeps the same shape after intense hitting by animal.
Mesh spacing prevents sheep and goat from stepping through the
fence.
Prevents wild animals and predators from entering the farm and
attack the sheep.
Specification of Hinge Joint Field Fence
| Material | Galvanized iron wire, High tensile steel wire |
| Inner wire diameter | 1.8-2.5mm |
| Edge wire diameter | 2.0-3.5mm |
| Opening (cm) | (Warp) 15-14-13-11-10-8-6; (Weft) 15-18-20-40-50-60-65 |
| Surface treatment | Electro galvanized, Hot dipped galvanized |
| Height | 0.8m,1.0m, 1.2m, 1.5m,1.7m, 2.0m, 2.3m,2.6m |
| Length | 50m, 100m ,200m (According to the request of the customer) |
| Woven type | Hinge Joint, fixed knot |
| Applications | Used for borders in field and grassland for breeding of deer,
cattle,etc. |
| Characteristics | Corrosion resistance, high tensile strength wire,firm structure,etc |
| Packing | Water proof paper inside and plastic outside Each roll to be wrapped with plastic film inside and then bubble
film outside 9 rolls or 12 rolls or 25 rolls per wooden pallet |
More Details
No. | Specification of Field Fence | Weight | Bottom | Dia. |
| Type | Specification | kg | mm | mm |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 | 2 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 | 22 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 | 22 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 | 2 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 | 2 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 | 2 |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 | 2 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 | 2 |
Remark: Height of fence is from 0.8m up to 2.0m, length is 50m 100m or 200m
per roll. Surface treatment can be made with electro galvanized or hot-dip
galvanized, hot-dip galvanized cheap horse fence panels is much
more durable. Special size can be customized. |
Widely used:
Field fence is a kind of mesh used in cattle, goat, deer, and pig.
It is used for grassland husbandry, pastures, livestock. protection of ecological projects,
forestry, highway and environment.

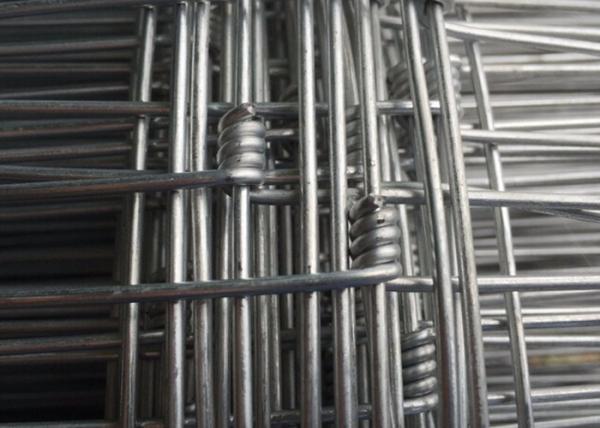

Hinge Joint
Fixed Knot
